More Clearance. Less Cost.
Eliminate expensive ductwork and maximize your headroom with our ultra-low profile design.

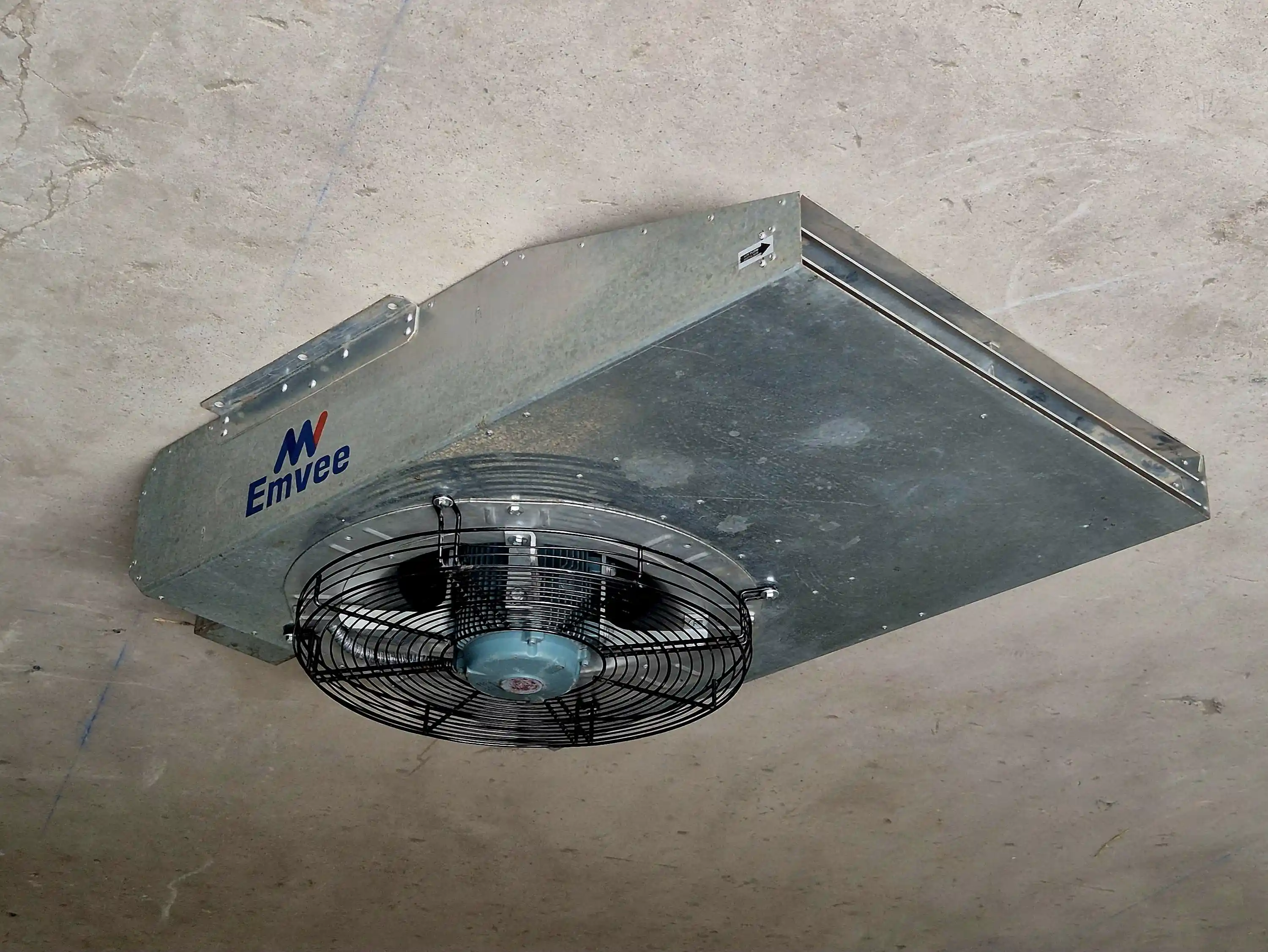

High-Thrust Centrifugal Jet Fan
Our centrifugal jet fan series represents the pinnacle of car park and tunnel ventilation technology. These high-performance centrifugal jet fans are engineered to provide powerful, directed airflow, ensuring effective smoke and pollutant extraction. The unique centrifugal jet design allows for low-profile installation without compromising on thrust, making it the ideal centrifugal type jet fan for modern infrastructure projects.
Preliminary Jet Fan Estimator
Estimated Fans Required: ---
Disclaimer: This is a preliminary estimate for budgeting only. Contact us for a detailed CFD analysis.
Advantages of a Centrifugal Type Jet Fan
Superior Throw
The centrifugal jet design produces a high-velocity, focused air stream, ideal for directing air and smoke across large, open areas like car parks.
Low Profile Design

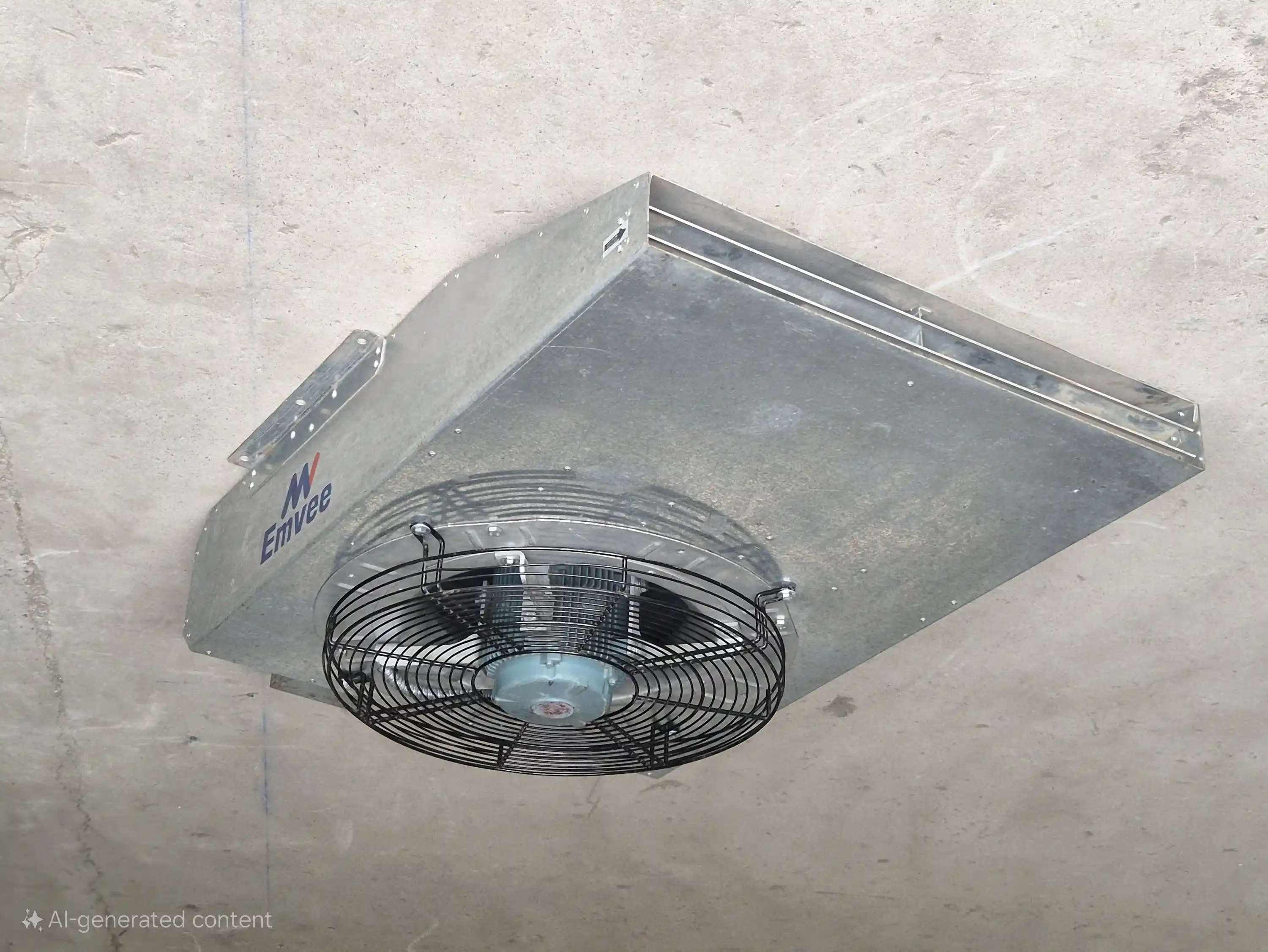

Our centrifugal jet fans have a significantly lower height than axial fans, preserving valuable clearance height in confined spaces.
Certified Safety
Rigorously tested and certified to EN 12101-3 standards for high-temperature operation (F300/F400), ensuring reliability during a fire.
Primary Applications for Centrifugal Jet Fans

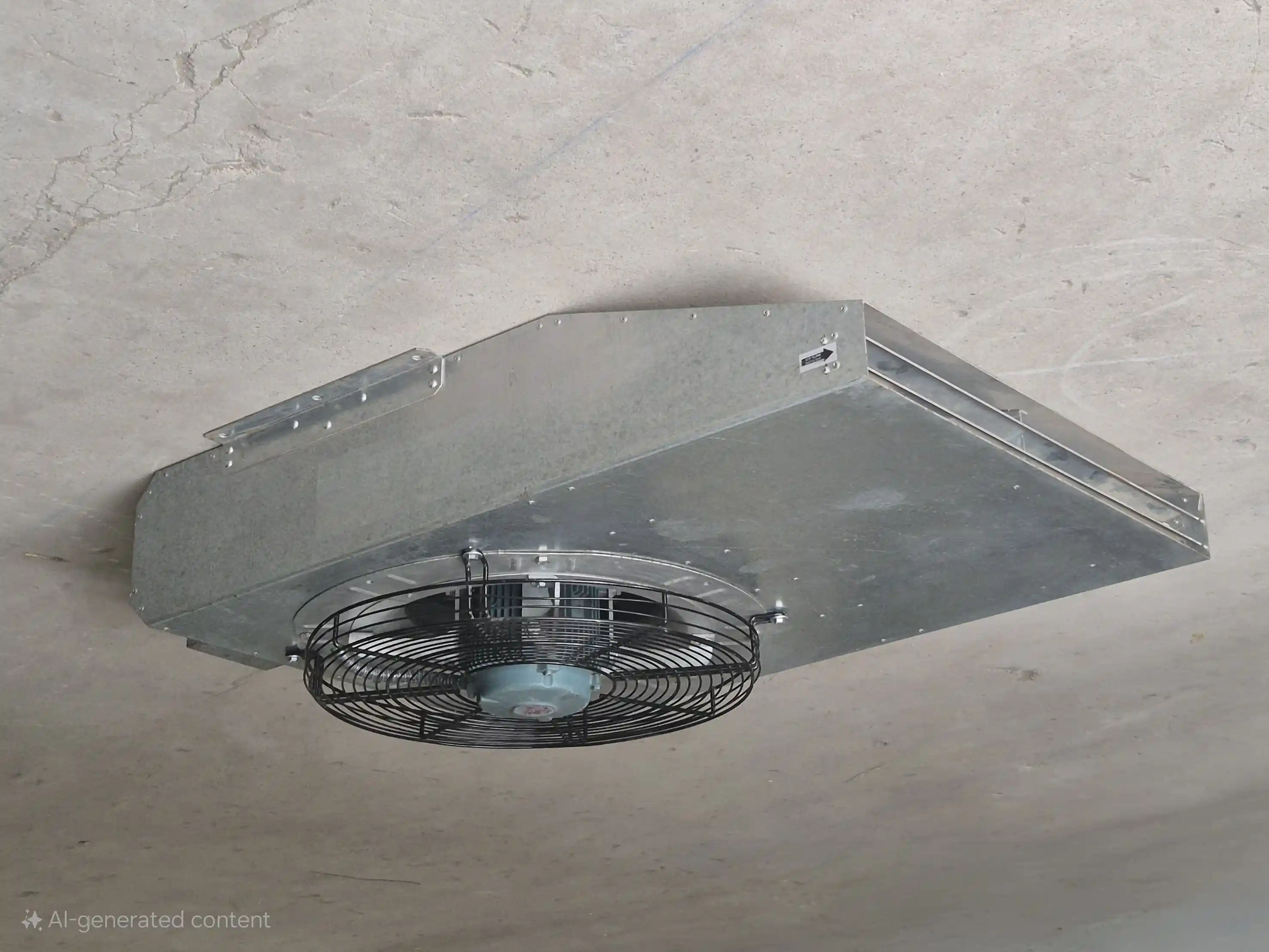

Underground Car Park Ventilation
The primary application for centrifugal jet fans. They create air movement to exhaust CO fumes during normal operation and clear smoke during a fire, eliminating the need for costly ductwork.
Tunnel Ventilation
In road and rail tunnels, these fans provide longitudinal ventilation for pollution control and emergency smoke extraction, ensuring user safety. The high thrust of a centrifugal jet is critical here.
Technical Specifications
Find detailed information in our centrifugal jet fan catalogue. Our fans are built to the highest standards for performance and durability.
| Parameter | Value |
|---|---|
| Fan Type | Centrifugal Jet Fan / Centrifugal Type Jet Fan |
| Certifications | EN 12101-3, F300 (300°C/120 min) & F400 (400°C/120 min) |
| Thrust Range | 50N to 100N |
| Motor | IE2/IE3, IP55, Class H insulation. Two-speed options available (DOL or Star/Delta). |
| Impeller | Backward curved centrifugal type, high-efficiency, dynamically balanced. |
| Casing Material | Heavy-gauge galvanized steel, optional paint finish. |
| Safety Features | Inlet guard, outlet deflector, integrated isolator switch. |
| Acoustics | Low-noise design with optional silencers for sensitive applications. |
See Our Centrifugal Jet Fan in Action
Watch how our centrifugal jet fans create an effective ventilation system in a multi-level car park.
Frequently Asked Questions
The primary difference is airflow direction and profile. An axial fan moves air parallel to its axis, creating a wider cone of air. A centrifugal jet fan draws air in axially and discharges it radially (at 90 degrees) into a housing that directs it out. This creates a more focused, higher-velocity jet stream. For car parks, the centrifugal type jet fan is often preferred for its low profile and ability to 'throw' air further, overcoming obstacles.
The number and placement of centrifugal jet fans are determined through a detailed Computational Fluid Dynamics (CFD) analysis. Our engineers model the car park's geometry, considering factors like ramps, columns, and ceiling height. The CFD simulation calculates the required thrust to achieve the desired air changes per hour (for CO ventilation) and to effectively move smoke towards the main extract points in a fire scenario. We offer CFD analysis as a service to ensure optimal system design.
You can download the complete centrifugal jet fan catalogue directly from this page. It contains detailed performance curves, dimensional drawings, acoustic data, and electrical specifications for all models in our range. Click the "Download Catalogue" button above for instant access to the PDF.
